JS-1100 Electronic Fluorination Liquid
Product Information
Brand: Jingshang
Model: JS-1100
Color: Transparent liquid

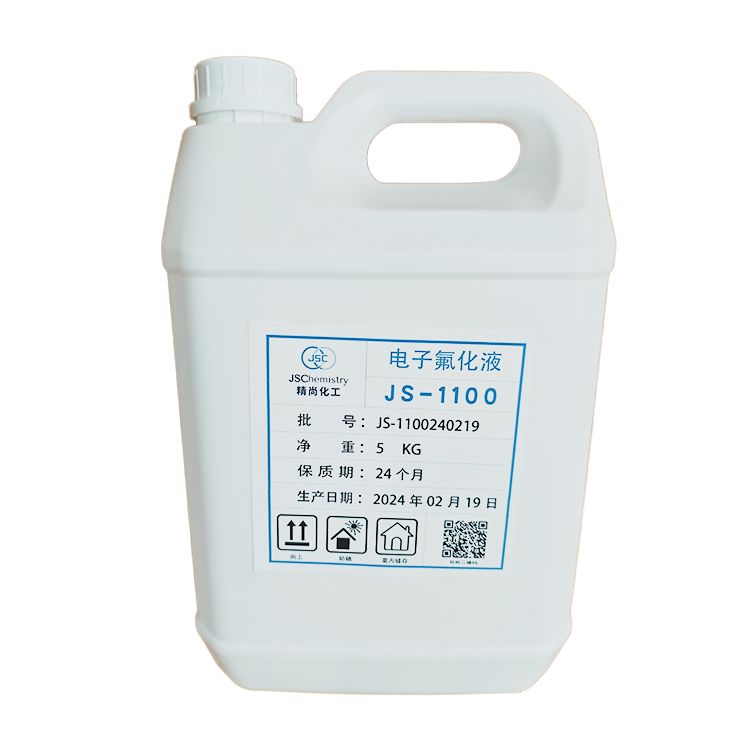

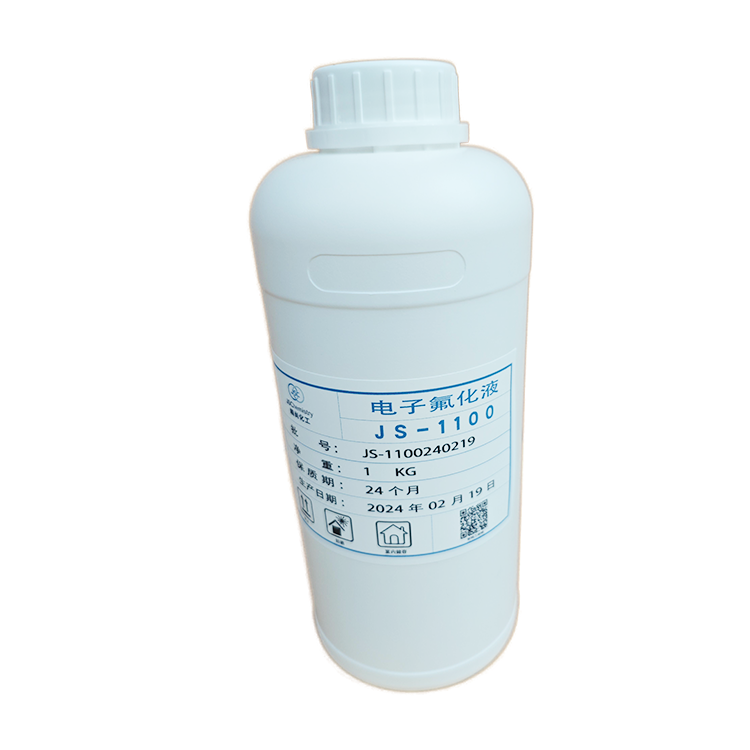

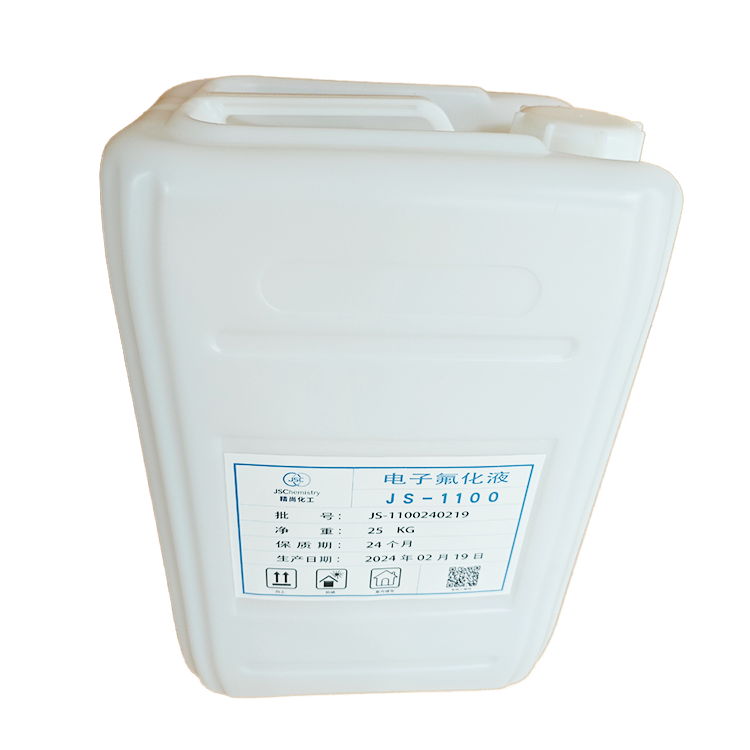

Specifications: 1KG/barrel, 5KG/barrel, 20KG/barrel, 250KG/barrel
Shelf life: 24 months unopened
Boiling point: 100 ℃
JS-1100 electronic fluorinated liquid is a proprietary hydrofluoroether, ethoxy non fluorinated butane (C4F9OC2H5), which is a transparent, colorless, low odor fluid used in many applications to replace ozone depleting substances (ODSs), high global warming potential compounds (GWP), and chlorinated materials. It has low toxicity, with a time weighted average exposure guideline of 200ppm (average 8 hours). The boiling point of JS-1100 fluid is higher than most chlorofluorocarbons, HCFCs, and hydrofluorocarbons, reducing evaporation losses. Can be used for applications such as electronic cooling, heat transfer, data center immersion cooling, precision cleaning, solvent cleaning, etc.
u Non flammable
u Zero ozone depletion potential
u Low toxicity
u Excellent material compatibility
u Low Global Warming Potential
u Exemption from solvents (US Environmental Protection Agency)
u Transparent, colorless, odorless liquid
u The convenient boiling point and excellent environmental, health, and safety characteristics of JS-1100 electronic fluorinated liquid have made it widely used as a heat transfer fluid, cleaning solvent, and in lubricant deposition and a wide range of industries.
u The low surface tension and low viscosity of JS-1100 fluid make it an ideal choice for steam degreasing and cold cleaning applications.
u The boiling point, wide liquid range, and low-temperature viscosity of JS-1100 fluid make it an ideal choice for cooling ion injectors, dry etchers, and CVD machines.
Physical state: | Liquid |
Specific physical form: | Liquid |
colour | colourless |
smell | Light odor |
Olfactory threshold: | No information available |
PH value: | Not applicable |
Melting point/freezing point: | -38℃ |
Boiling point/initial boiling point/boiling range: | 100 ℃ |
Flash point: | No flash point |
Evaporation rate: | zero point zero seven |
Flammability (solid, gas): | |
Combustion limit range (lower limit): | Not detected |
Burning limit range (upper limit): | Not detected |
Vapor pressure: | 5,584.8 Pa [@ 20 ℃ ] |
Steam density: | 0.014 [@ 25 ℃ ] |
Density: | 1.67 g/ml |
Relative density: | 1.67 [Reference standard: Water=1] |
Solubility Water solubility: | 0.295 ppm [@ 20 ℃] |
Solubility - Non water soluble: | 0.067 small amount (less than 10%) [Details: solubility of water in Novec 1100 (ppm)] |
N-Octanol/Water Partition Coefficient: | 4.3 [Detailed information: (log Kow)] |
Spontaneous combustion temperature: | 408 ℃ [Detailed information: According to ASTM E-659 method] |
Decomposition temperature: | >200 ℃ [Detailed information: (anhydrous condition)] |
Viscosity: | < 5 mPa-s [@ 25 ℃ ] |
molecular weight | No information available |
Percentage of volatile substances | 100% |
Volatile Organic Compounds | Not applicable |
Exempted anhydrous VOC solvents | Not applicable |
JS-1100 electronic fluorine solution should be packaged in a clean, dry, and free of other impurities storage tank, with a rubber lined cover and encrypted seal during packaging. 1KG/barrel, 5KG/barrel, and 20KG/barrel are all made of HDPE material, while 250KG/barrel is made of iron plastic composite steel barrel. If the customer has requirements, packaging shall be carried out according to the customer's requirements.
JS-1100 electronic fluoride solution is stored in a low-temperature, dry and ventilated place (avoiding direct sunlight), and the shelf life of unopened products is 2 years; The shelf life after opening is affected by protective measures, and under sealed low-temperature and dry conditions, the shelf life is more than six months.
u This product must be used within its shelf life and should be opened and used immediately. Before use, be sure to read the product MSDS.
u If it splashes into the eyes during use, immediately rinse with plenty of water and seek medical attention; If in contact with skin, please wash thoroughly with soapy water.
u Avoid contact with high temperatures or alkaline earth metals during use, as they can easily decompose and reduce performance.
